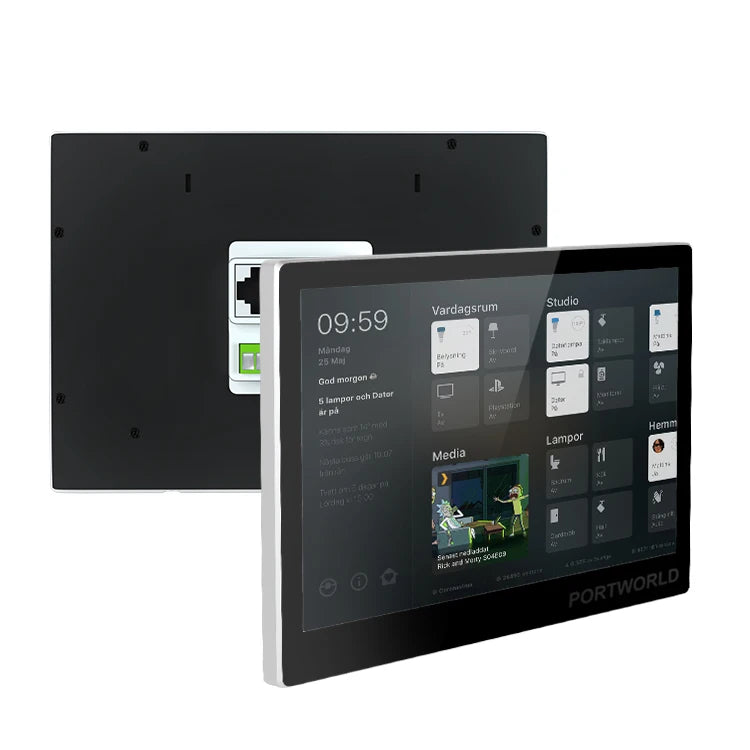

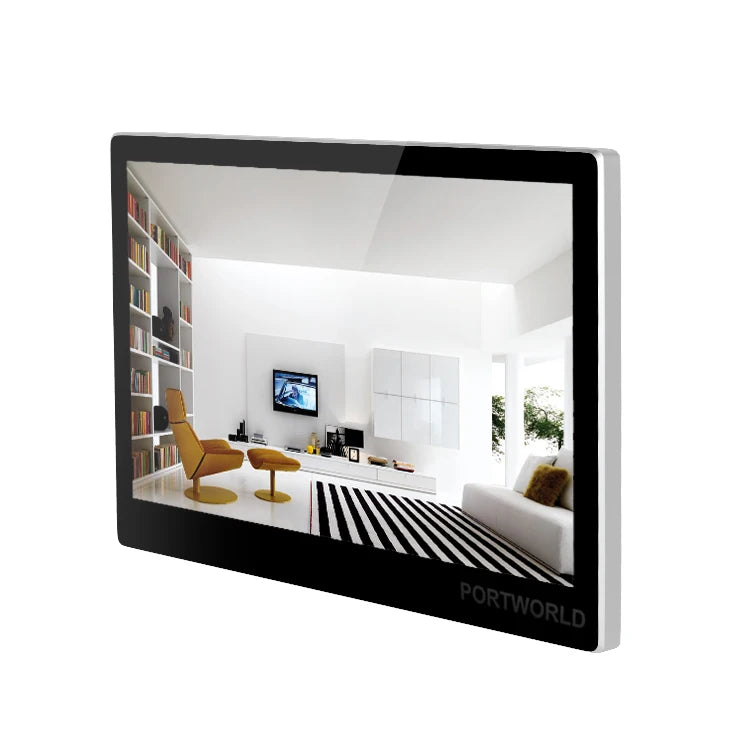

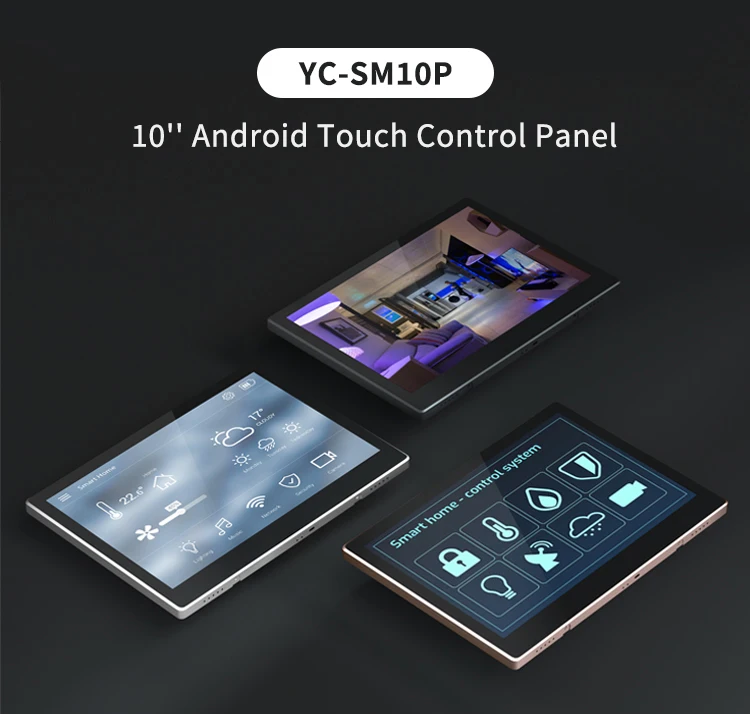

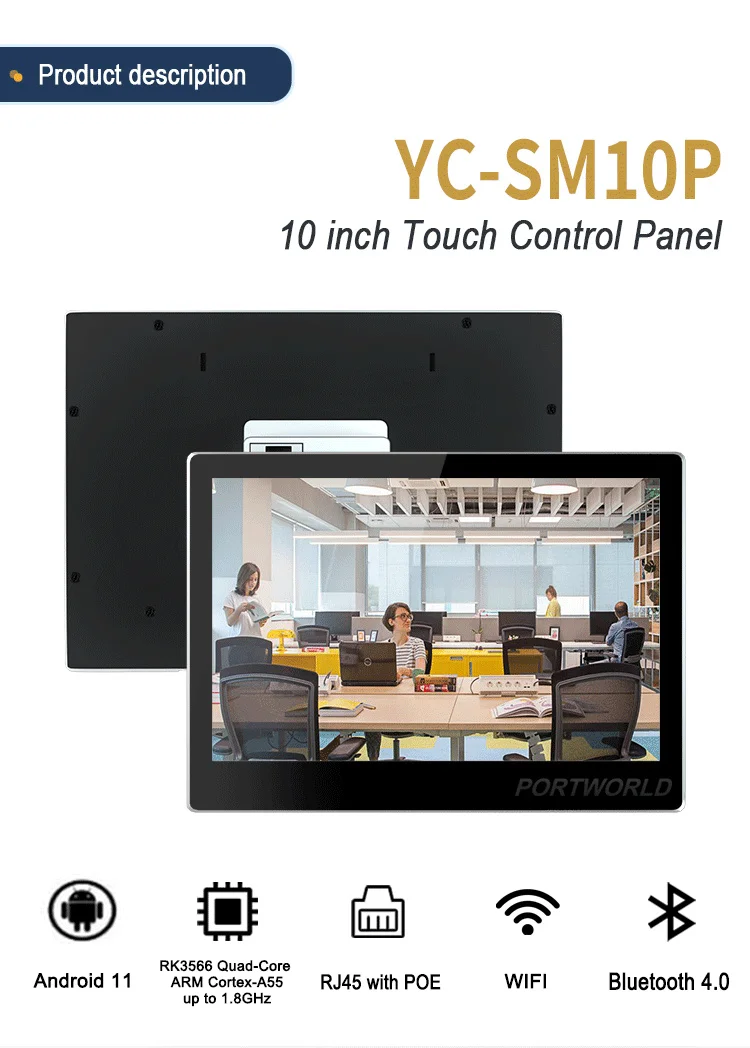

TABLET PC SAMPLE YC-SM10P Smart home automation 10 inch IPS touch screen landscape display Android AIO POE tablet inwall mount

System

CPU

RK3566 Quad-Core A55,up to 1.8GHz

Ram

2Gb

Rom

32GB

System

Android 11 with google play store

Touch panel

Display size

10 inch

Resolution

1280*800

Touch Panel

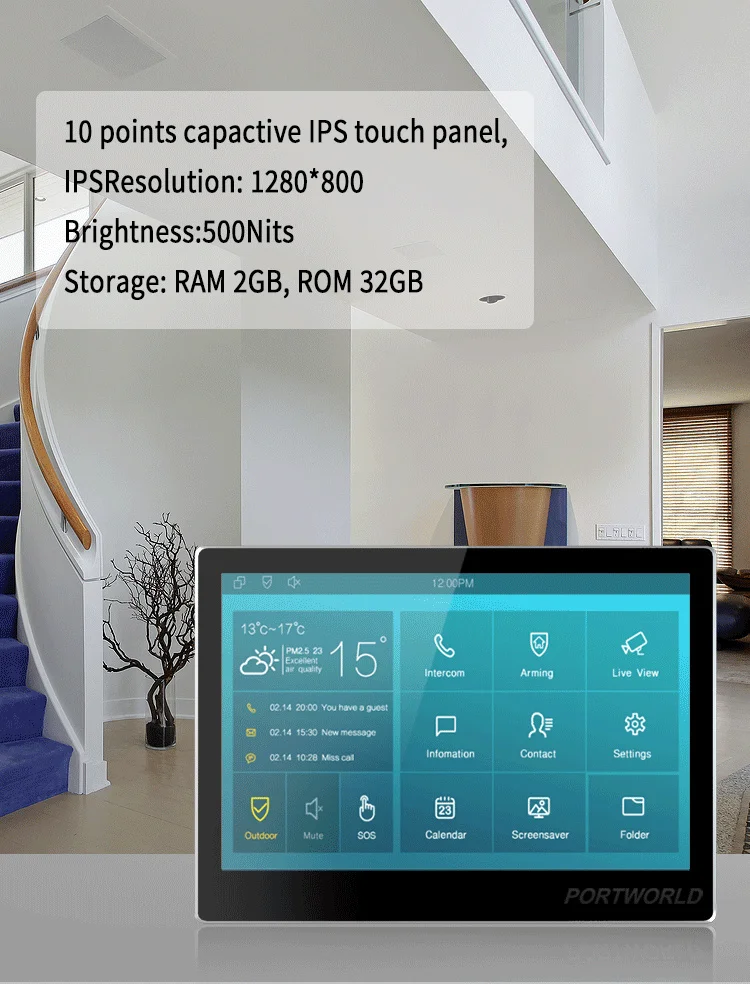

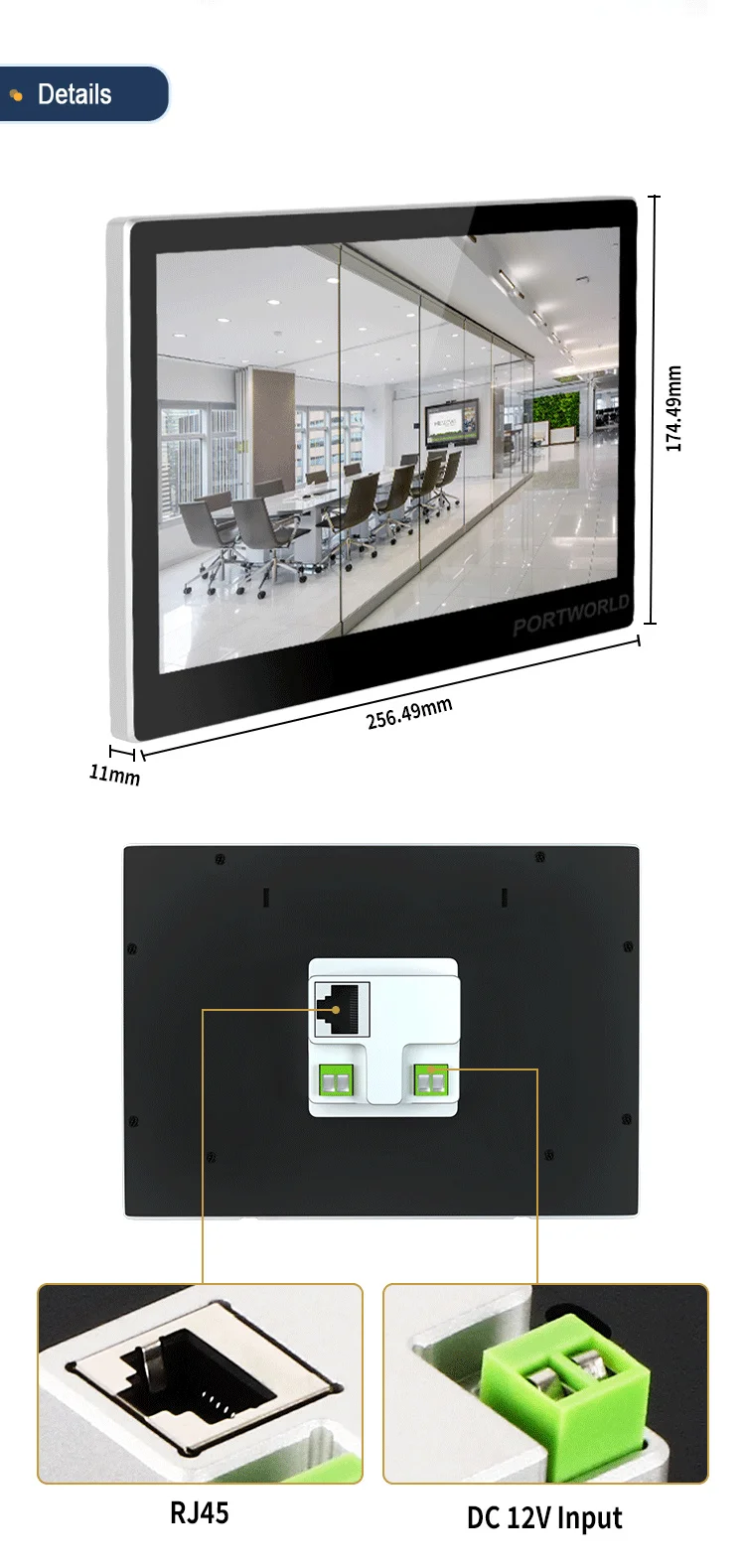

10 points capactive IPS touch panel, Size:256.49*174.49mm

Brightness

500Nits

Active area

16:9 / Display area : 218*135mm

Network

WIFI

2.4G WIFI (5G wifi option)

Blue--tooth

BLE 5.2

Ethernet

10M/100M

Material

Metal case

Metal case  (Size:253*9.58 mm)

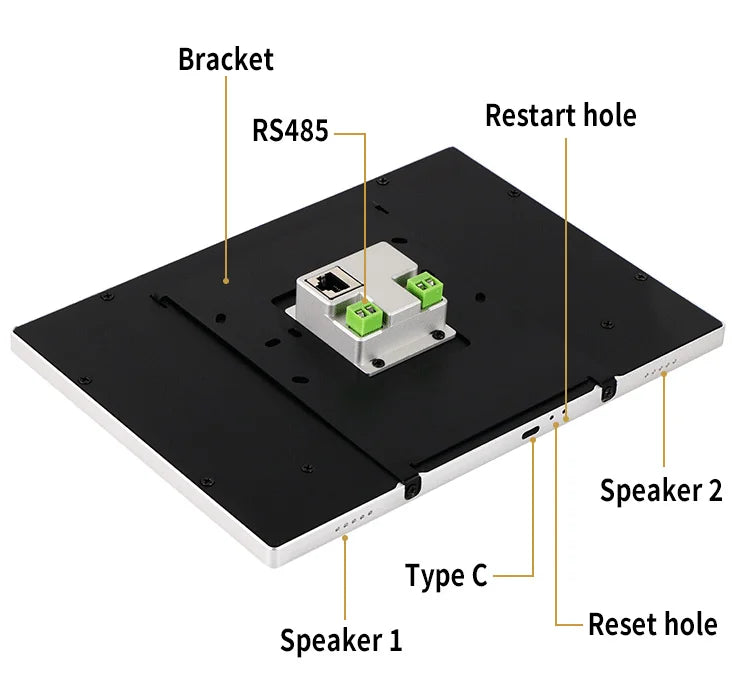

Interface

RJ45

Ethernet interface input (RJ-45 cable) ,Support POE

DC

12V-24V INPUT

Type C

Type C*1

Set

Reset*1

Restart

Restart *1

Mic

Mic*1

Camera

No cameara (optional)

RS485

Yes

Braket

Metal  bracket

Metal  bracket

Media plays

Speaker

2pcs Speaker *2W

Video

MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB

Audio

MP3 / WMA / WAV / AAC / FLAC / OGG

Entertainment

Video / Movie / Music / FM online

Others

Battery

NO

Mount

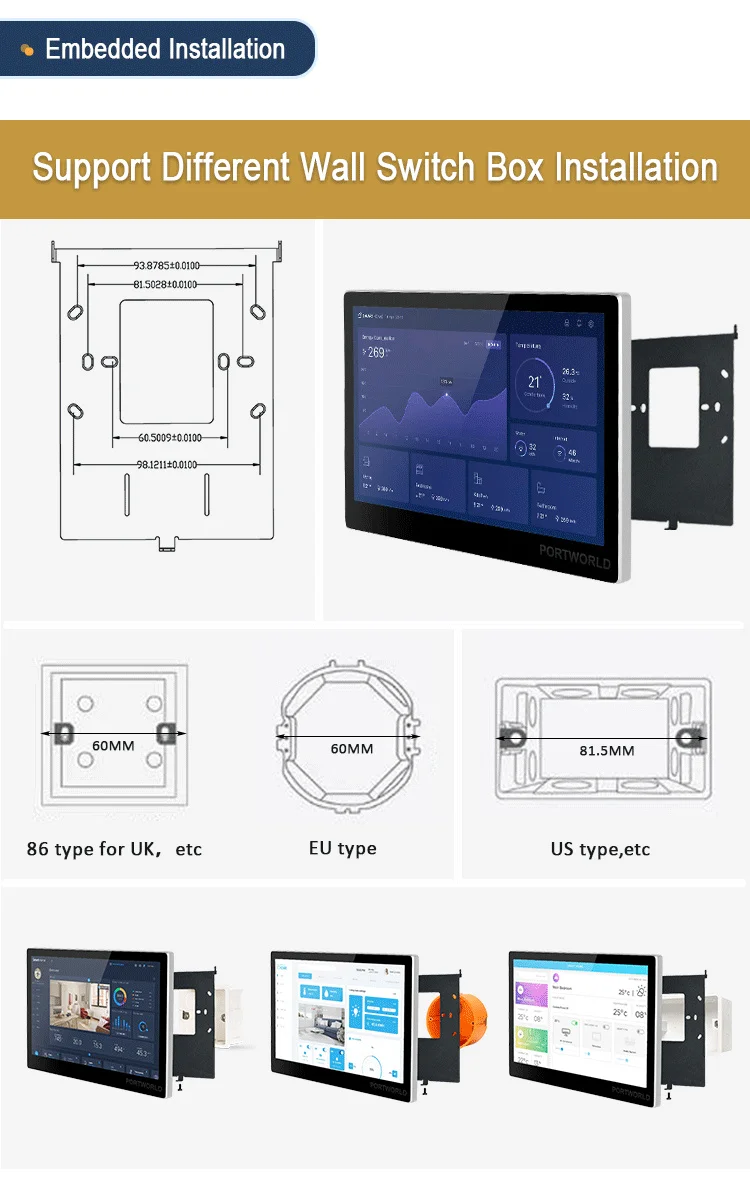

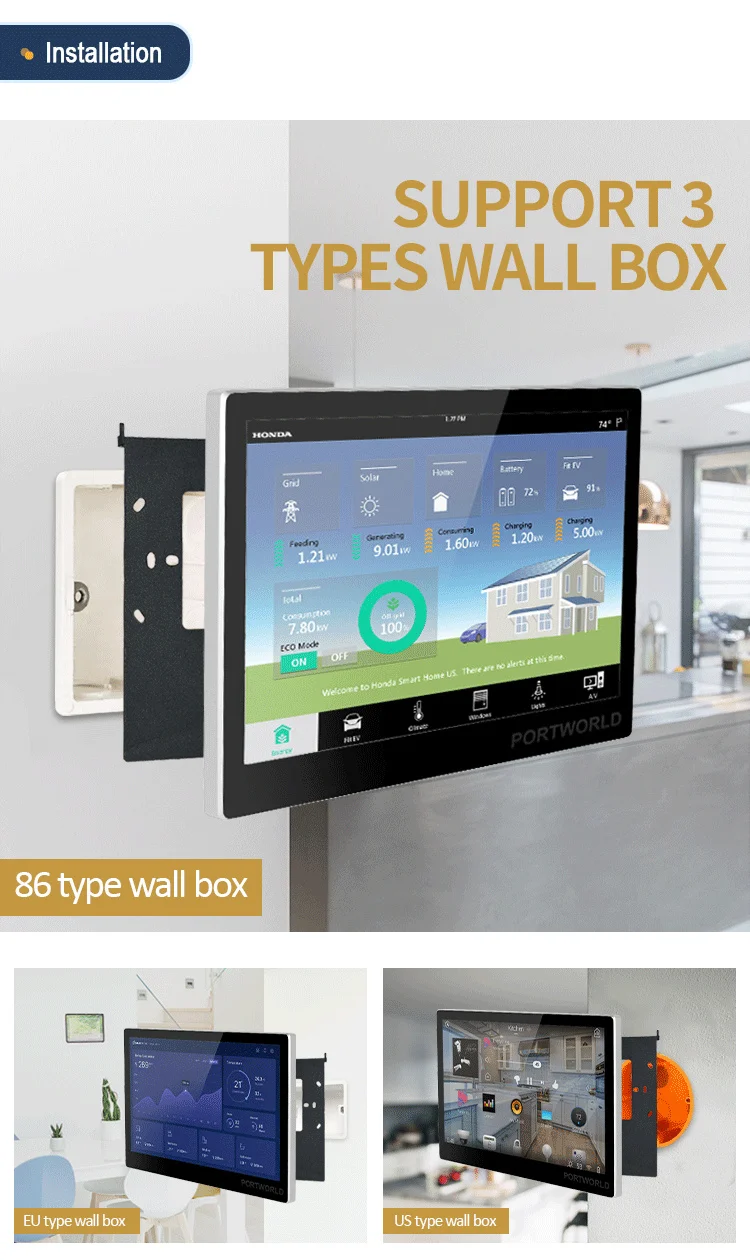

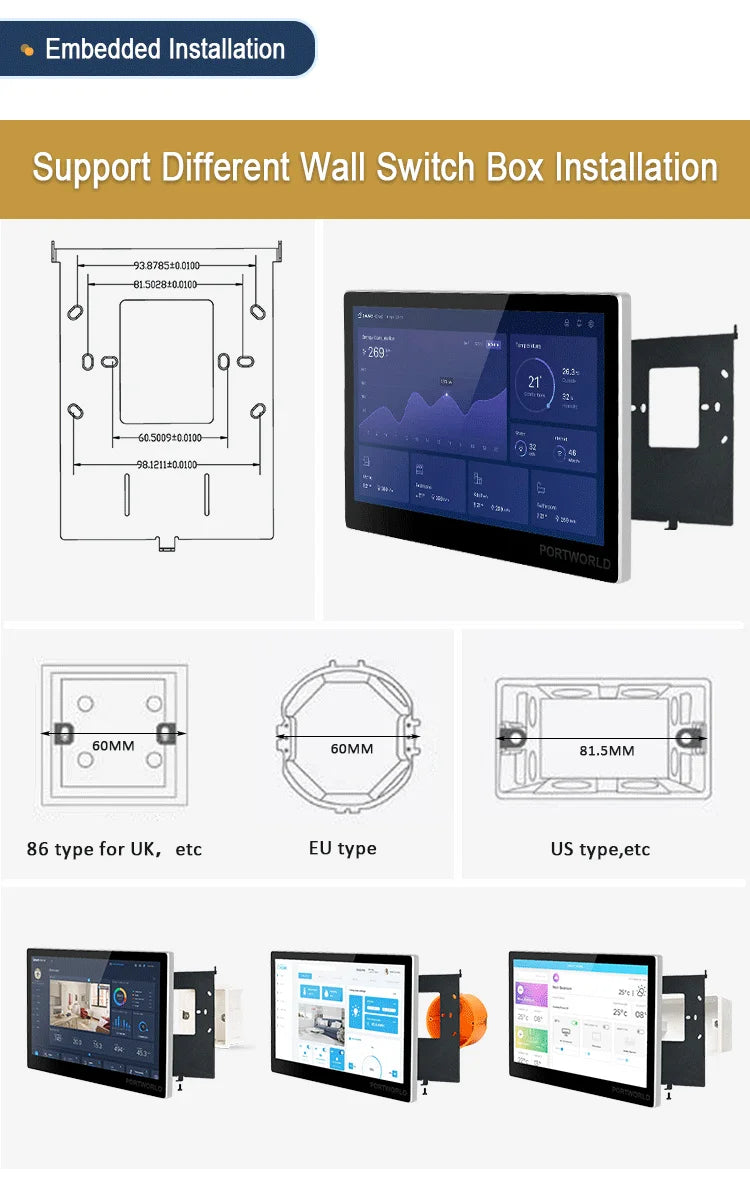

In wall /embedded wall mount ( suitable for EU/UK/US wall box)

Color

Black/Silver color

Language

Multi English

Warranty

One year warranty
