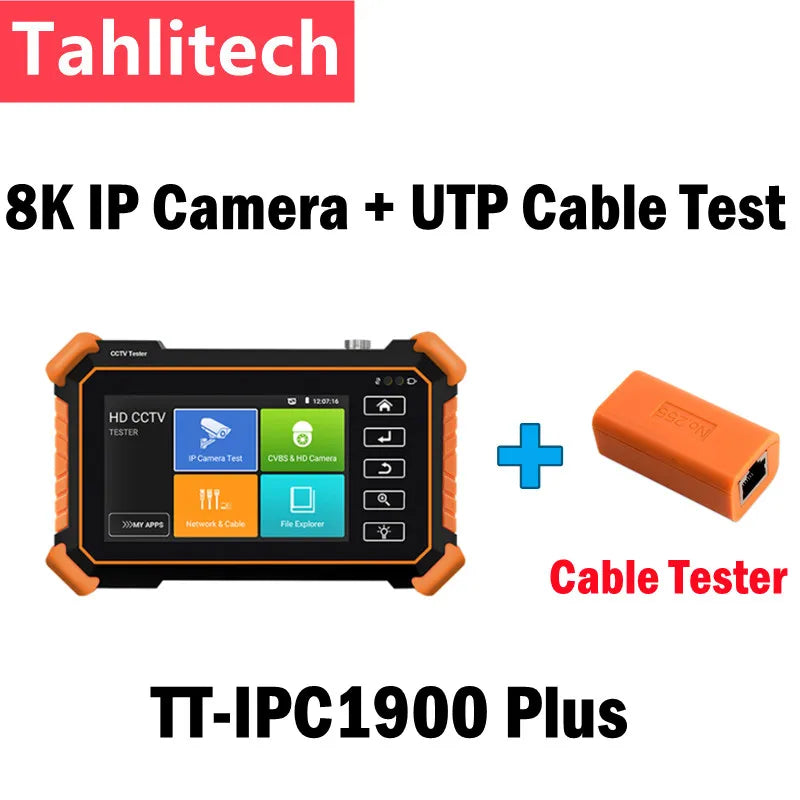

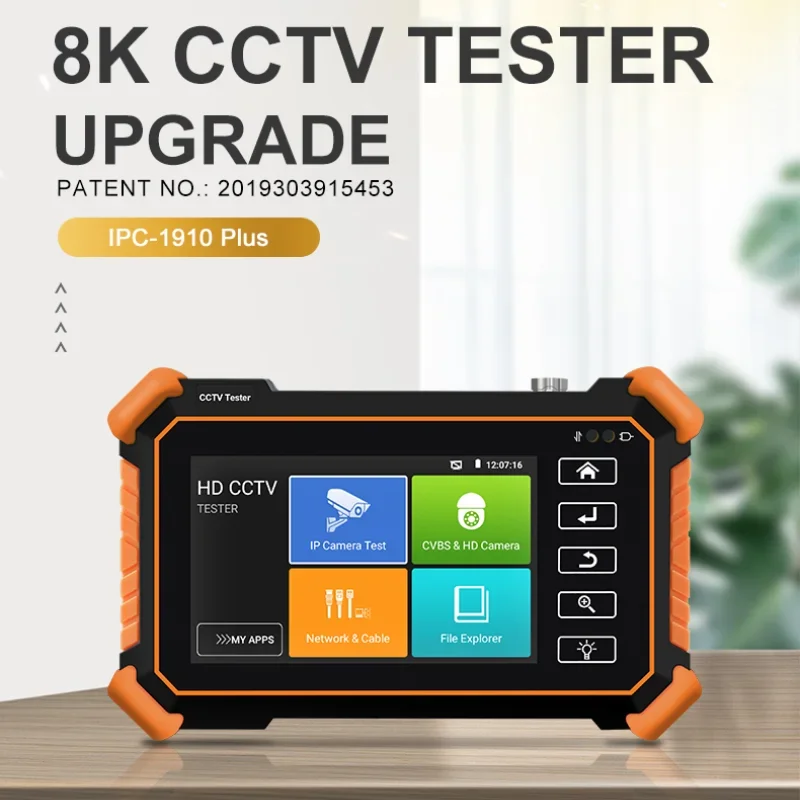

CCTV Tester 4-Inch 8K CCTV IP Camera Tester Monitor 4inch 8K IPC Tester IPC-1910Plus 8MP AHD CVI TVI CCTV Tester WIFI UTP Cable Tester

Features:

Camera test:

●4 inch IPS touch screen, 960*640 resolution

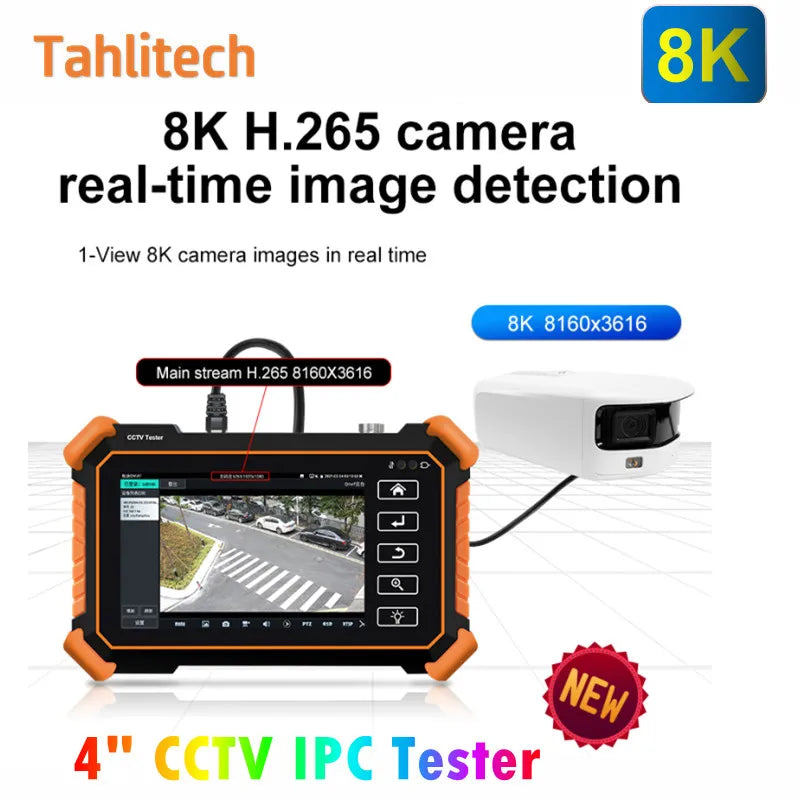

● H.265 & H .264 IP, 8K video display via mainstream

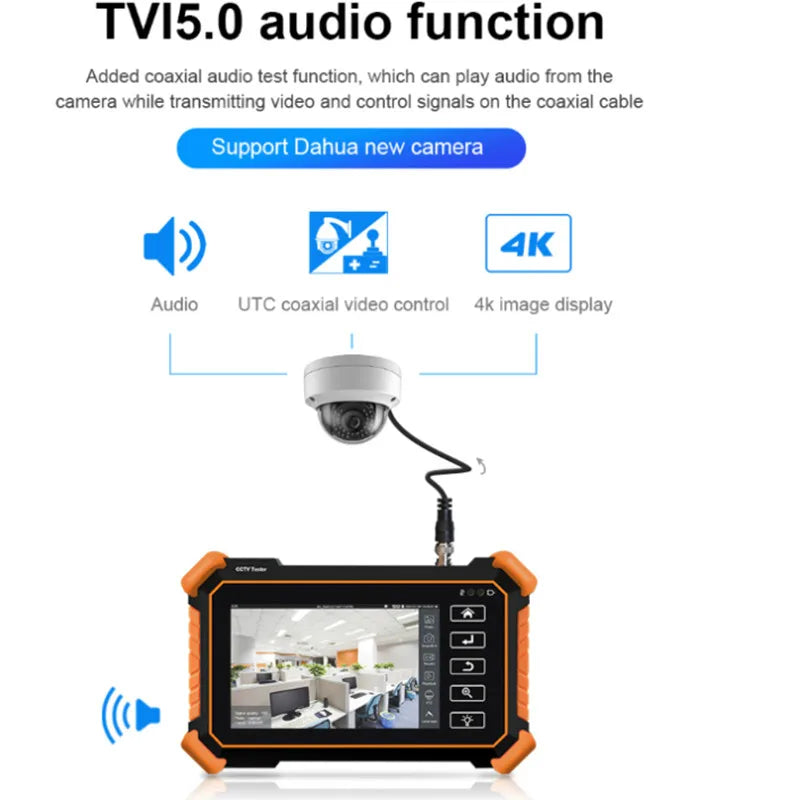

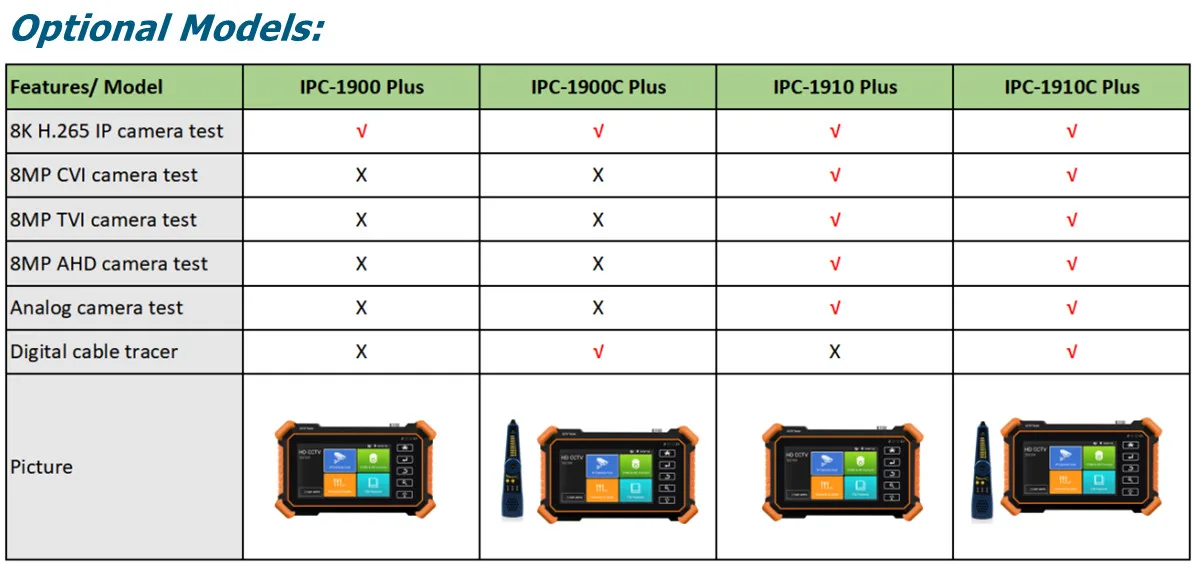

● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu*(Optional)

● 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu*(Optional)

● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu*(Optional)

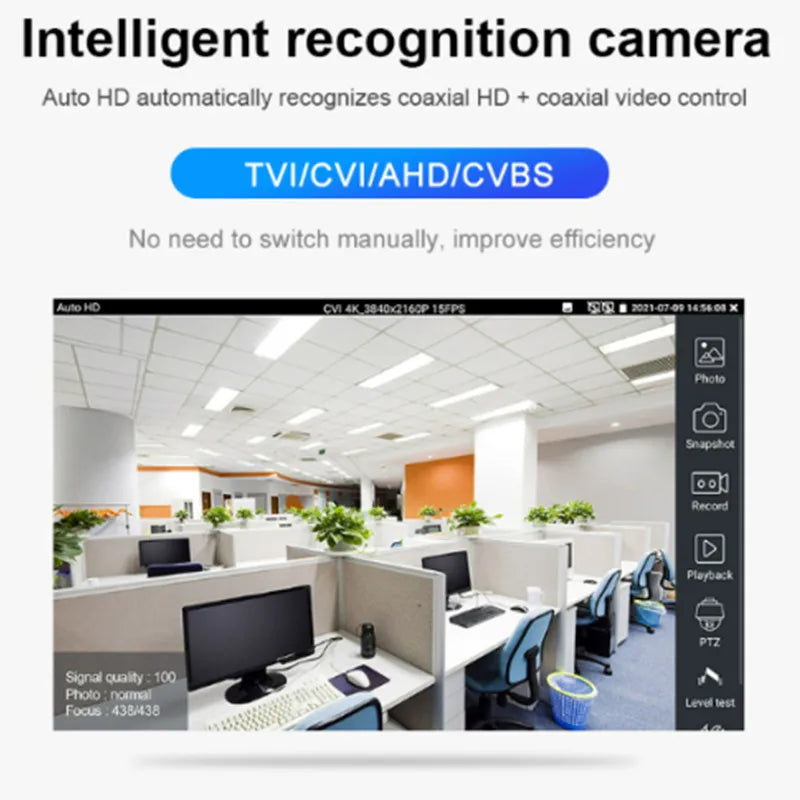

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.

●Rapid ONVIF, Auto log in and display image, create testing report

● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan cameraimage, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.

●AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name,can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc. Support reset password and set video occlusion alarm of HIKVISION cameras.

● Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel name.

● IP display image at the same time

●IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

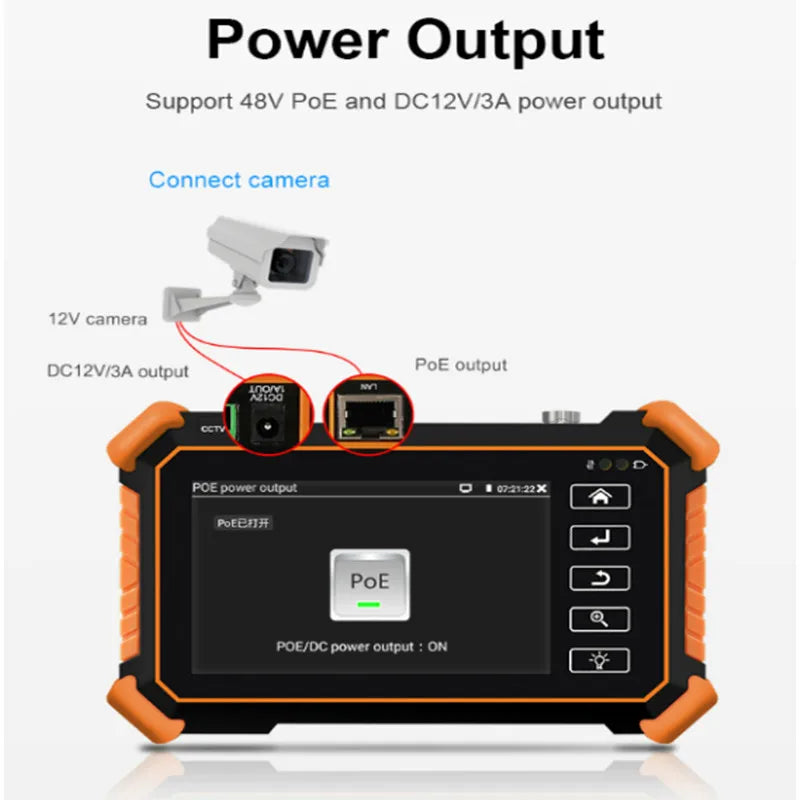

● DC12V/3A power output, camera can be powered from DC 12 Voltage.

● Rapid video, just by one key to detect all network cameras and auto display

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

Cable test:

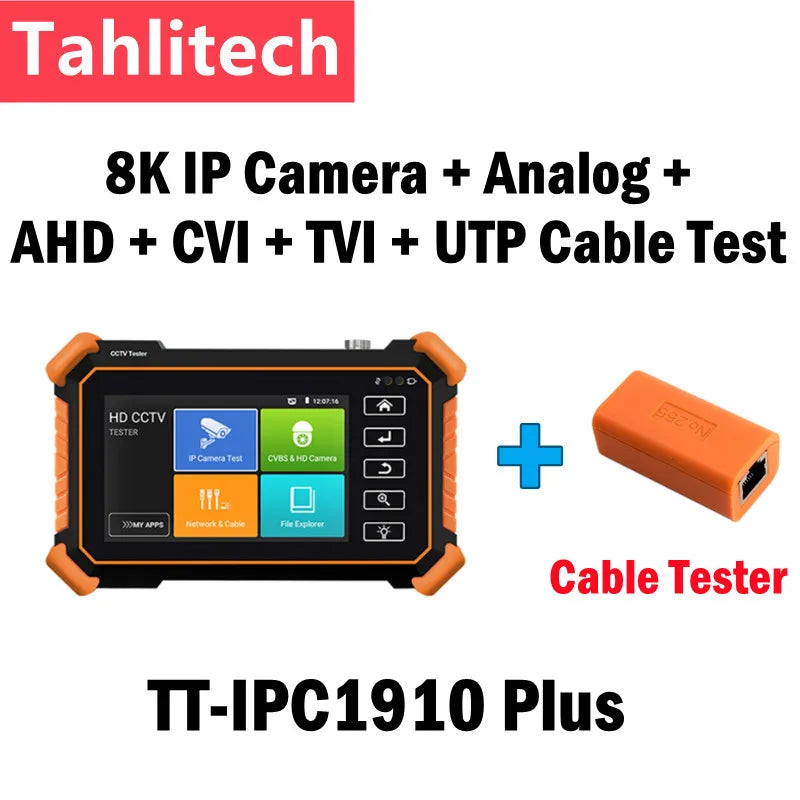

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

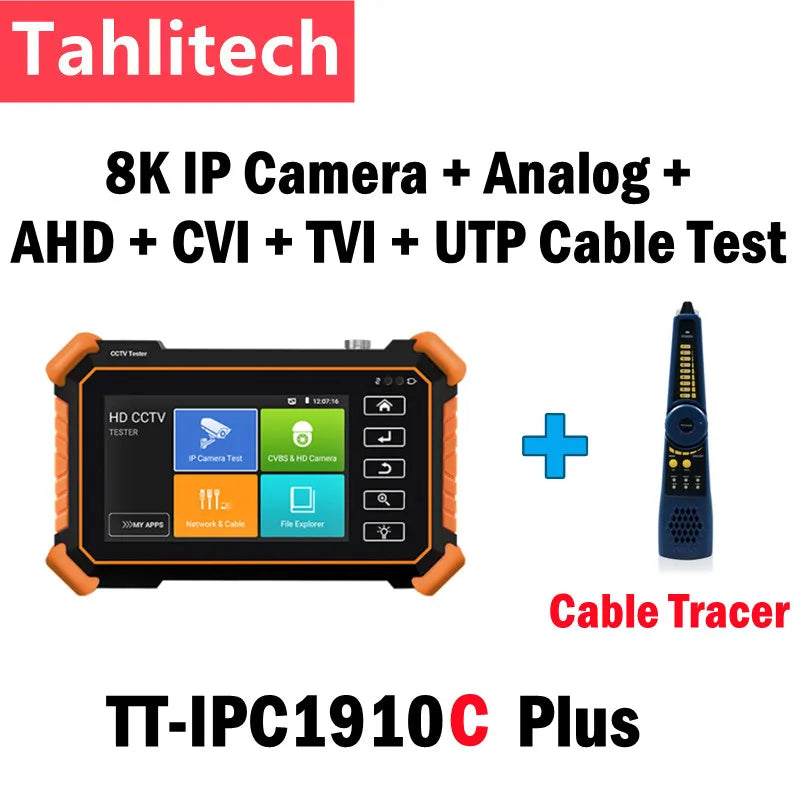

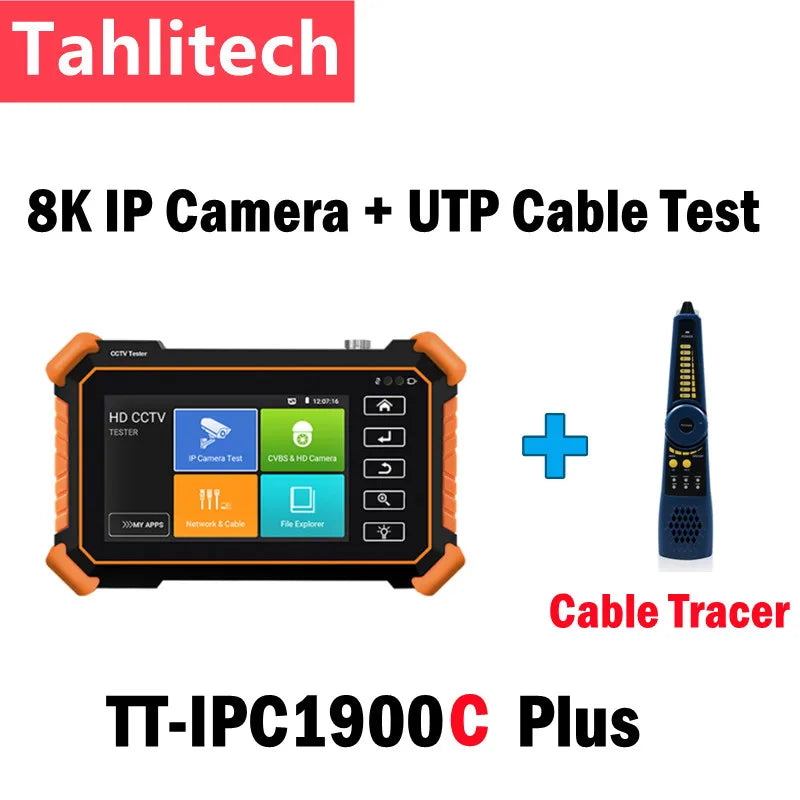

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time *(Optional)

Other Functions:

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

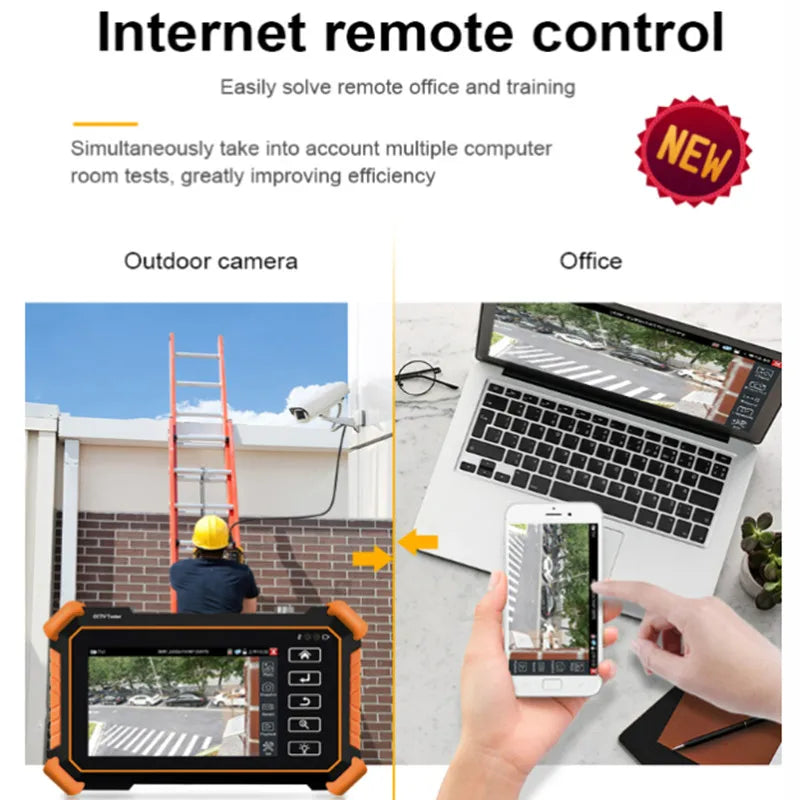

●TesterPlay: Tester, android version mobile phone and PC display at the same time

●Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

●Customers self-update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● SD card slot, support up to 32G, to save video, picture and other files

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

●7.4 V / 2600mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 9 hours
