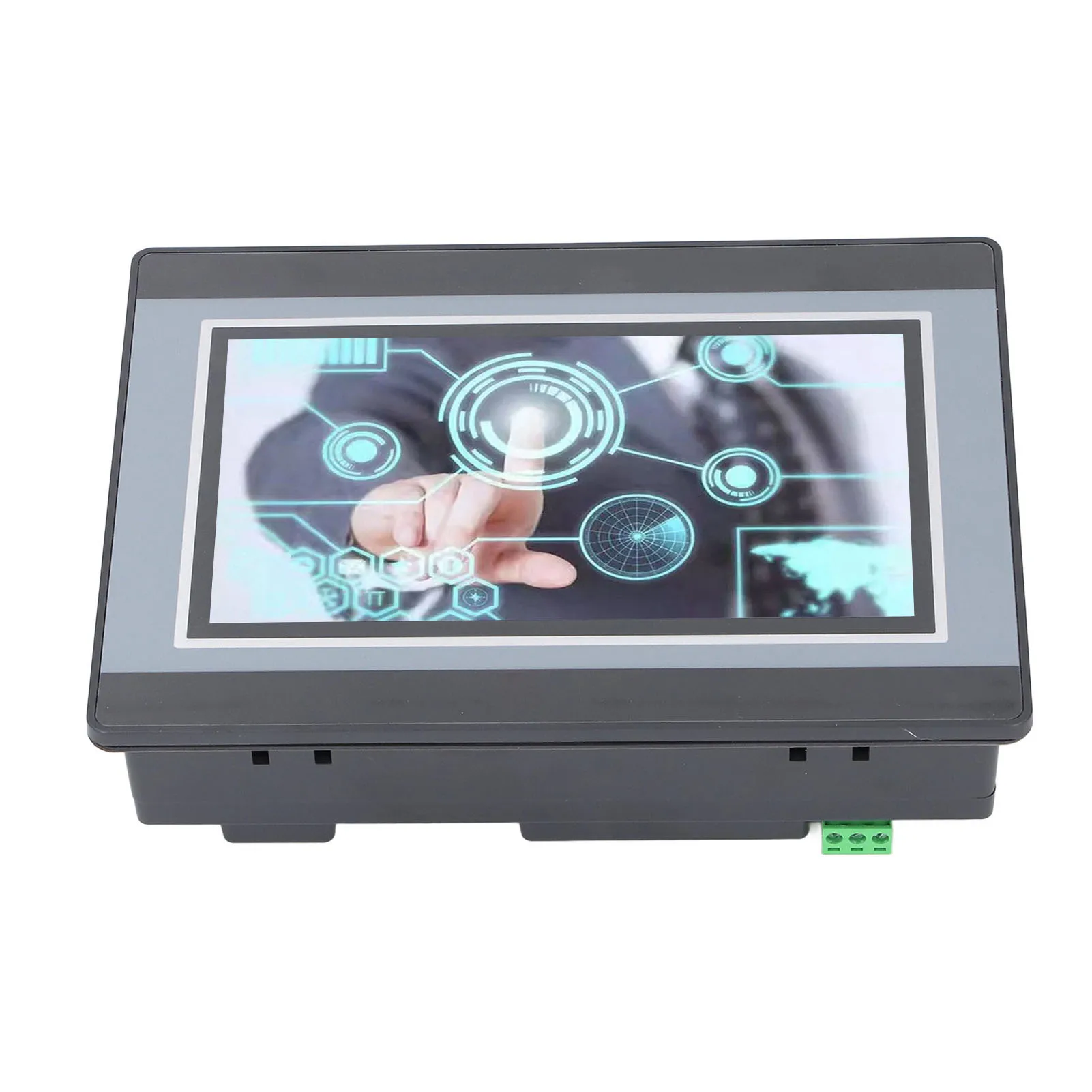

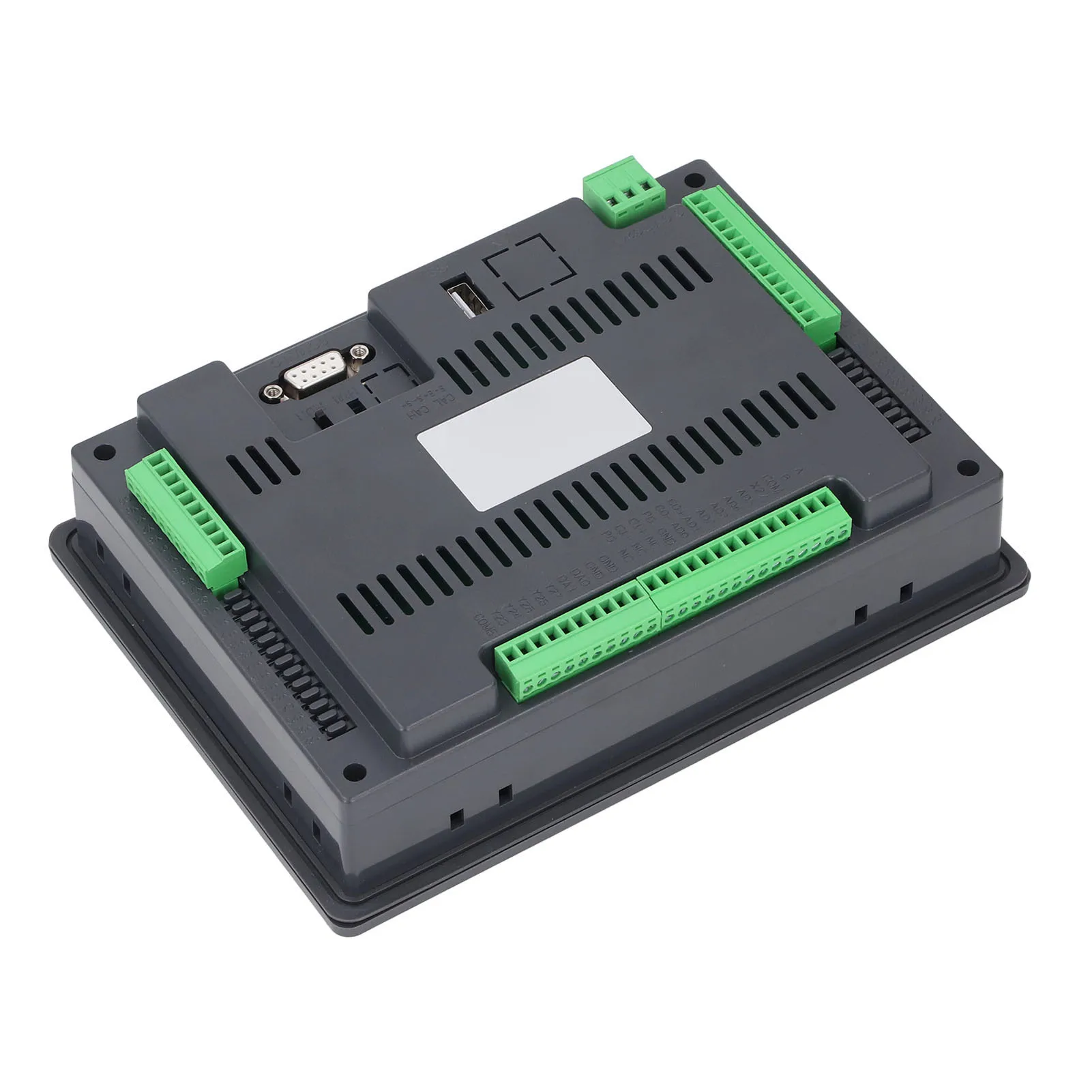

aluminum HMI PLC CONTROLLER HMI PLC Control Board 7 Inch TFT LCD Touch Screen Relay Output 12 in 8 Out High Speed Counting PLC Controller DC24V 5A

Feature:

1. [HMI PLC All in One] Equipped with 32 bit 240MHz ARM9 processor and 128M NAND FLASH memory, compatible with for FX3U 20 40 48MRT. The touch screen has low power consumption, fast running speed, and stable performance.

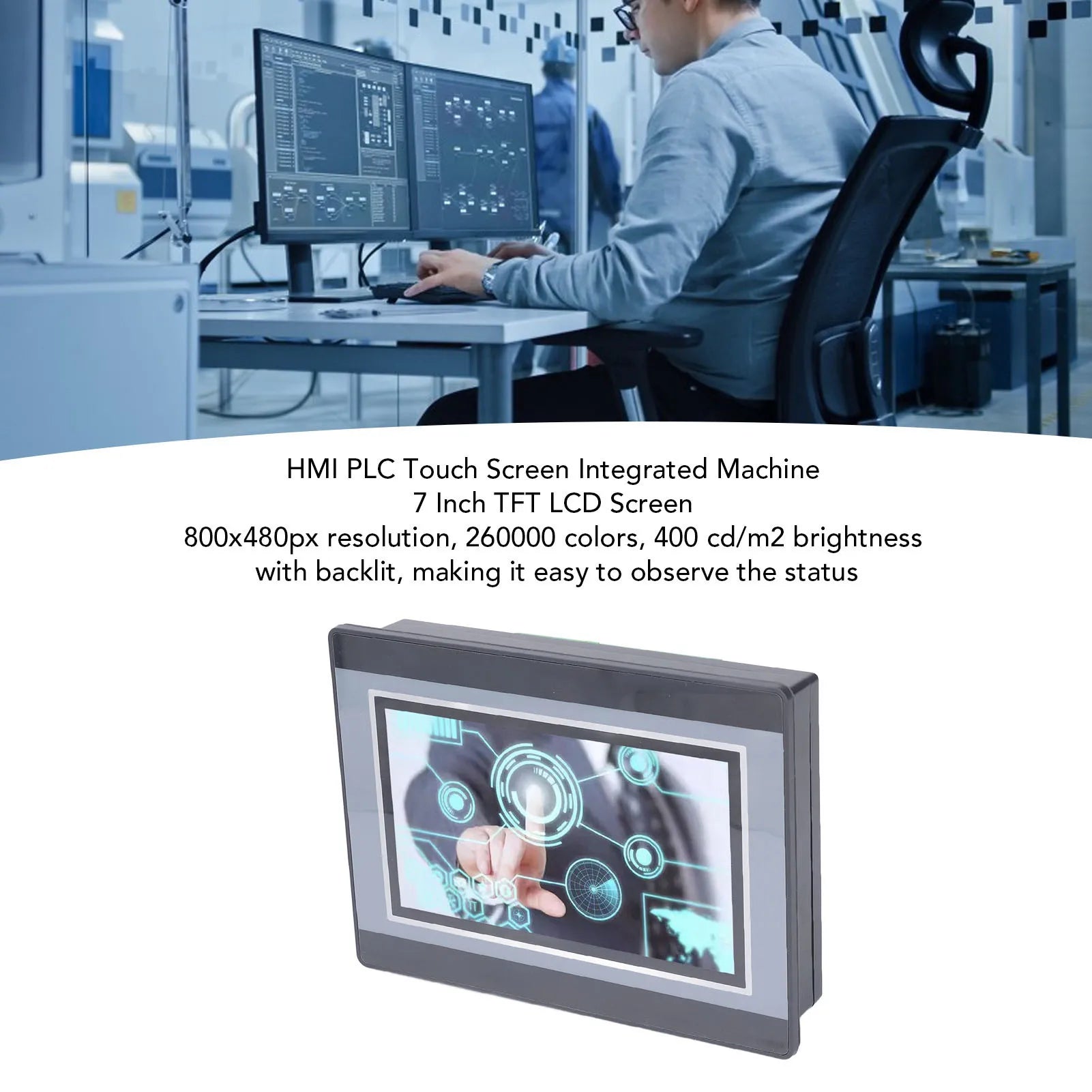

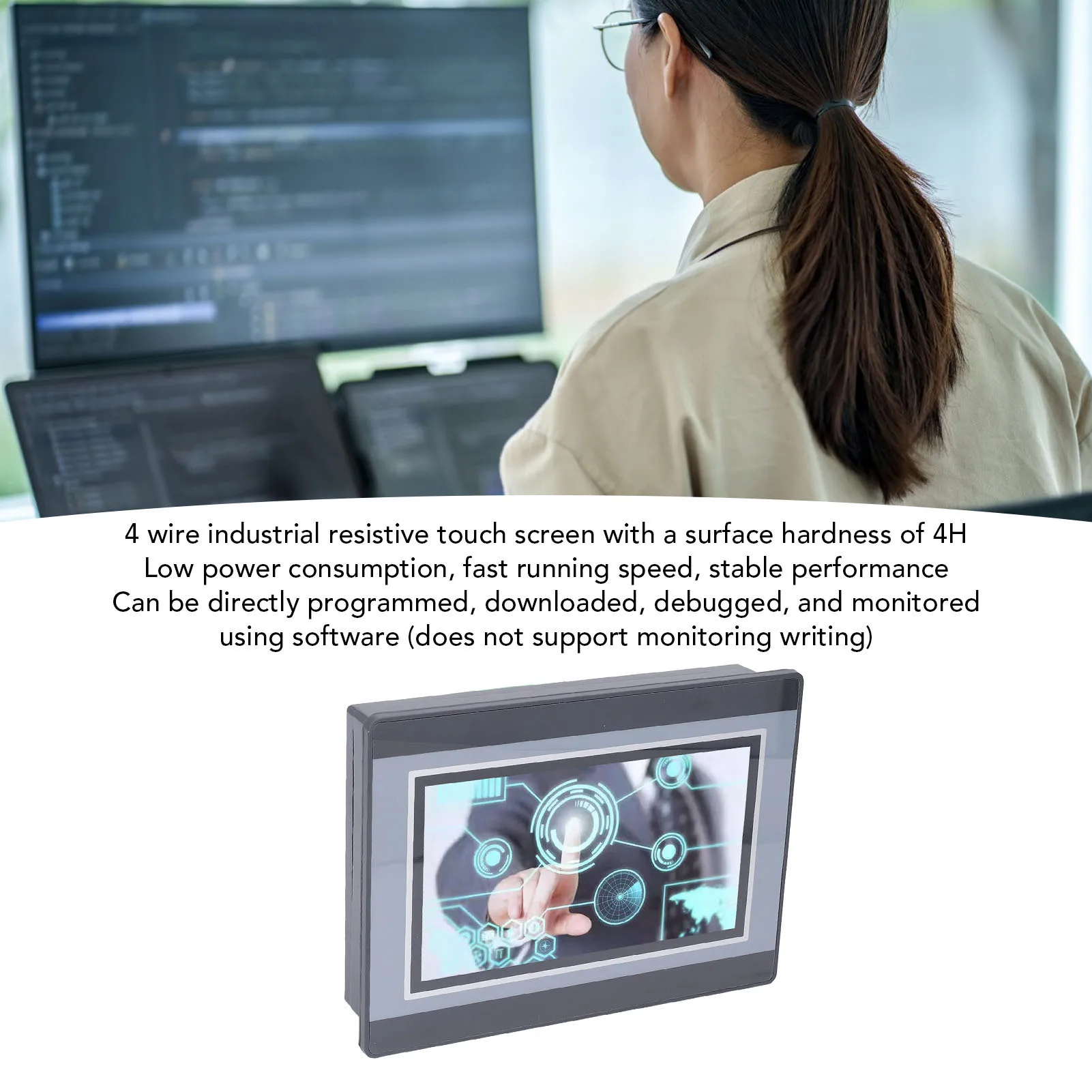

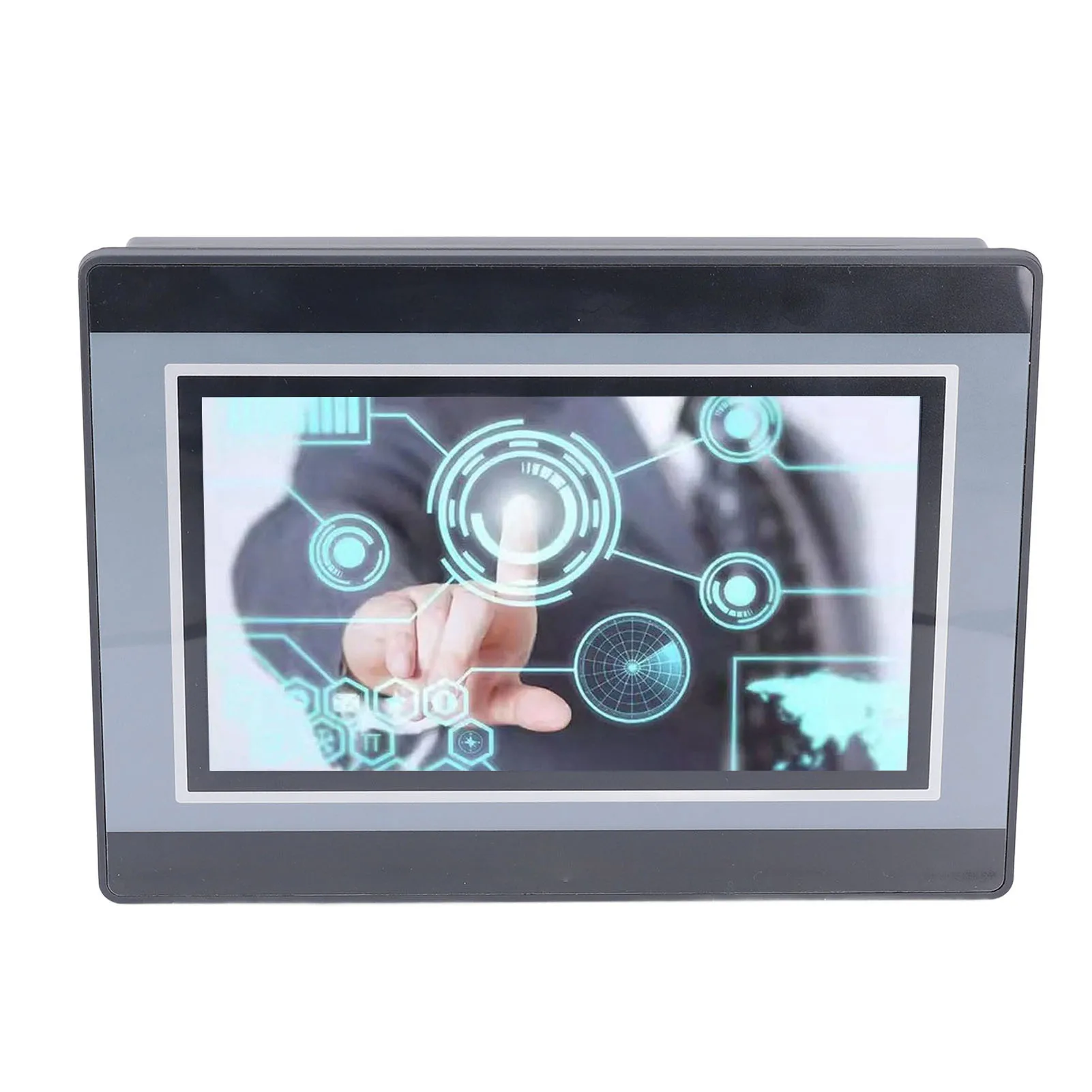

2. [7in TFT LCD Display] Featuring 800x480px resolution, 260,000 colors, and 400 cd/m2 brightness with backlit display, providing easy observation of status. The 4 wire industrial resistive touch screen ensures durability with 4H surface hardness.
3. [Simple Installation] With a hole size of 190x135 mm and complete with screws and fixing accessories, the HMI PLC all in one machine can be directly installed without hassle.
4. [HMI Programming] Use for HMI Studio 5.1 software for programming, download for HMI program using a USB male to male cable.
5. [PLC Download and Programming] The download speed is 38.4Kbps, you can directly use for GX Developer or for GX Works2 for programming, downloading, debugging, and monitoring (monitoring writing is not supported).

Specification:

Item Type: HMI PLC
Material: ABS
Model: WSB7020R

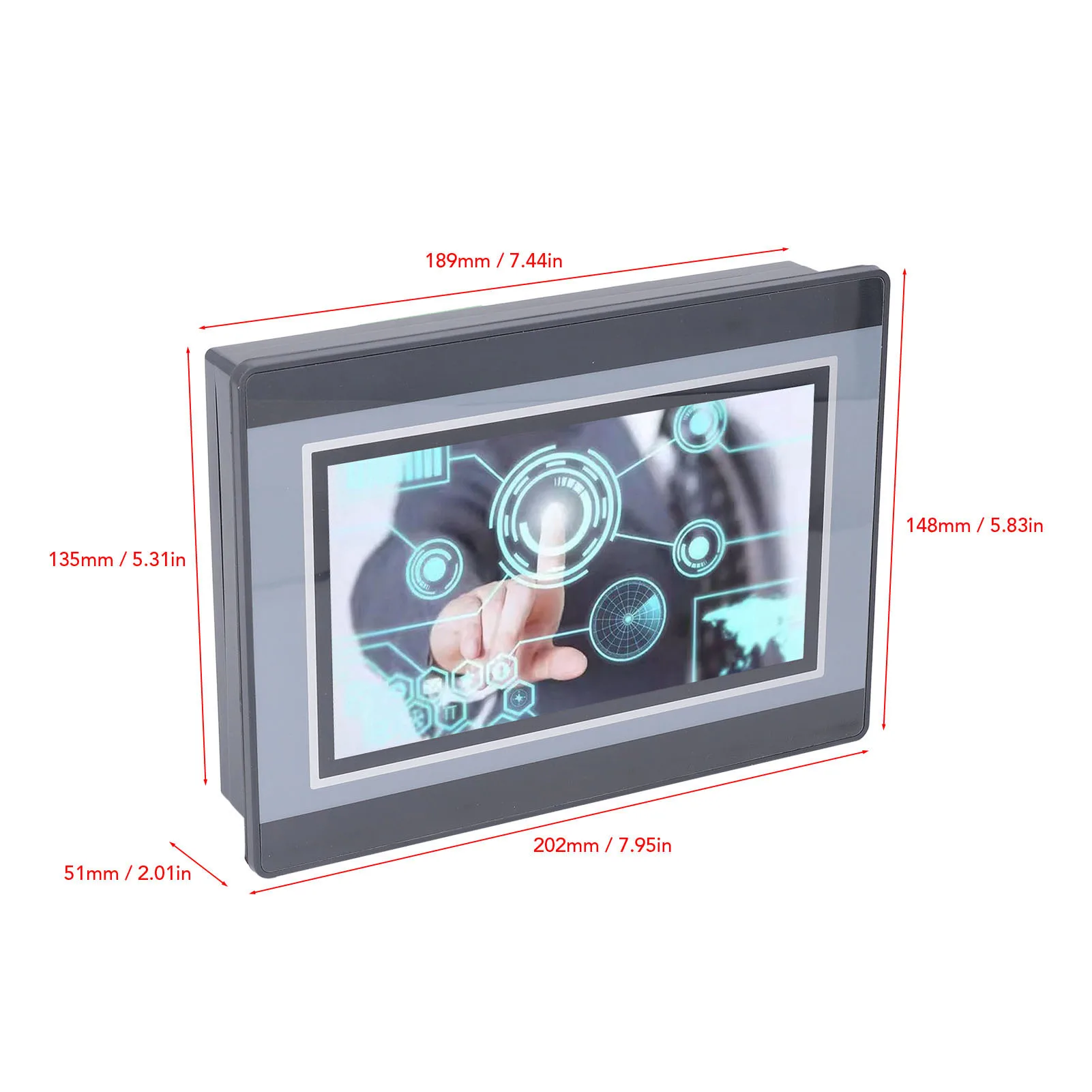

Size: Approx. 202x148x51mm / 7.95x5.83x2.01in
Opening Size: Approx. 190x135mm / 7.48x5.31in
Display Screen: 7 inch TFT LCD
Resolution: 800x480px
Color: 260,000
Download Speed: 38.4Kb
Input Points: 12
Output Points: 8
Output Type: Relay
Output Current: 5A
Load: 24V
High Speed Count: 6/3K
Pulse Output: None
Analog Input: Default 3AD 0-10V 3AD 0-20MA AD0 AD1
Analog Output: 20A 0-10V
Clock: Supported

How to Use:

Follow the instructions in the electronic manual (universal electronic manual).

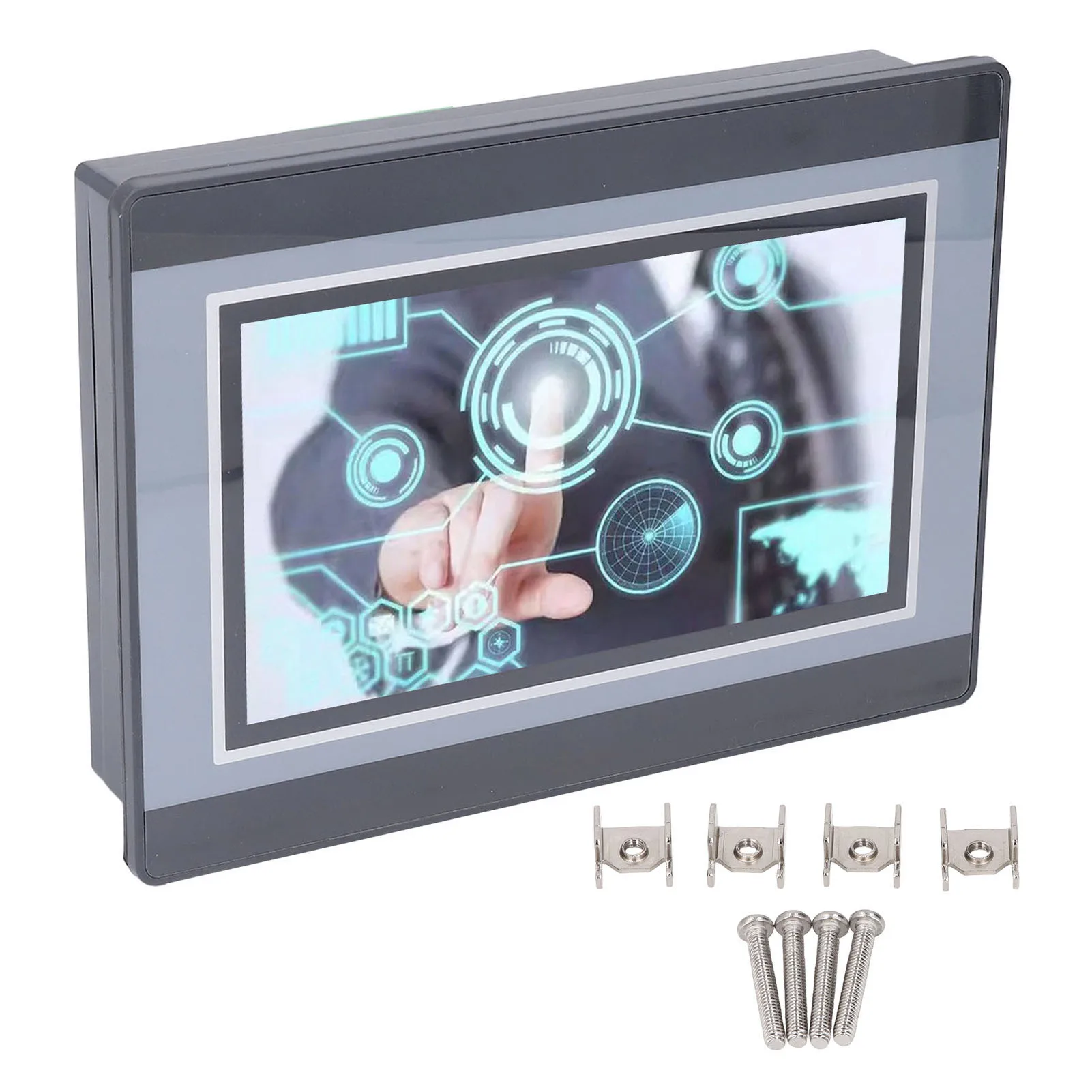

Package List:

1 x HMI PLC
4 x Installation Screws
4 x Fixing Brackets
